Extend your Wi-Fi coverage to more rooms

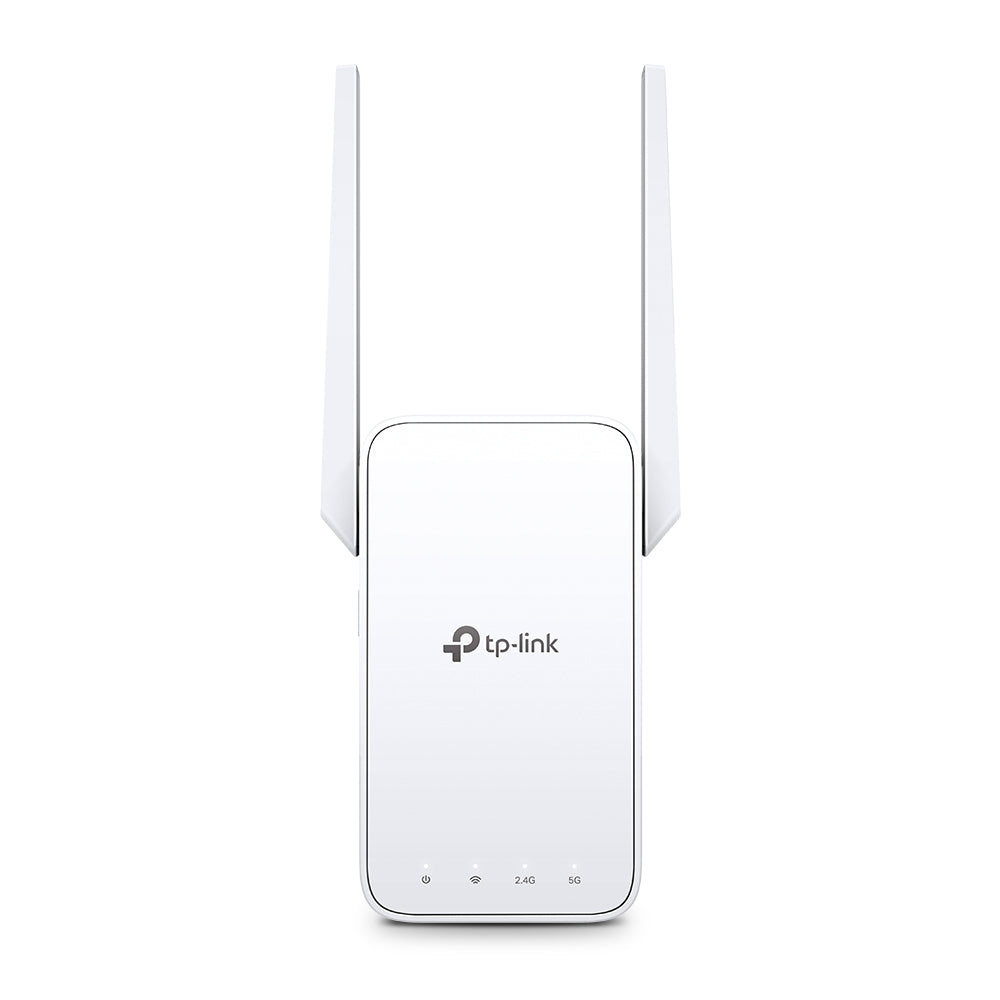

AC1200 Wi-Fi repeater
RE315
AC1200 Wi-Fi repeater
RE315
The coverage of conventional routers is limited, leaving Wi-Fi dead spots in many corners of the home. The RE315 Range Extender increases stable, uninterrupted coverage to areas previously unreachable.
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
EasyMesh Devices
(Router + Range Extender)
Traditional Router
with Wi-Fi Extender
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
The RE315 Wi-Fi repeater uses dual-band 2.4GHz and 5GHz to transmit the internet signal with increased performance. This allows you to reach more connected devices at the same time, up to 300Mbps at 2.4GHz and 867Mbps at 5GHz. †
The RE315 Wi-Fi repeater maintains connections at maximum speed by intelligently choosing the best available route and band to reach each device.
Use one Wi-Fi band as backhaul and the other band as an access point to maximize connection speed.
For homes with a wired network, the Re315 Wi-Fi repeater can be used as a 2x2 MIMO dual-band access point by simply connecting it to the internet via an Ethernet cable.
Simply pressing the WPS buttons on the router and the RE315 Wi-Fi repeater will instantly expand your Wi-Fi coverage.
Notes: If your router does not support WPS, connect the Wi-Fi repeater via the Tether app.
The multi-color LED light helps you find the perfect location to place the Wi-Fi repeater to get the best internet access signal.
Set up and manage your Wi-Fi network via the TP-Link Tether app on your phone (Android, iOS). Compatible with TP-Link Wi-Fi repeaters and routers.
Wireless | |
---|---|
Working modes | Range Extender/Access Point |
HARDWARE FEATURES | |
---|---|
Ports | 1 10/100 Mbps Ethernet port (RJ45) |
Buttons | WPS button, reset button |
Input power | 100-240V~50/60Hz |
Power Consumption | 9.5 W (maximum power consumption) |
Dimensions | 3.5×1.4×4.9 in. (89×35.0×124.1mm) |
Antennas | 2 external antennas |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4GHz & 5GHz(11ac) |
Signal Rate | 5 GHz: up to 867 Mbps 2.4 GHz: up to 300 Mbps |
Working Modes | Range Extender/Access Point |
Reception Sensitivity | 5 GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -77dBm 11ac HT20 MCS0: -94dBm 11ac HT20 MCS8: -71dBm 11ac HT40 MCS0: -92dBm 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm 11ac HT80 MCS9: -62dBm 2.4 GHz: 11g 54Mbps: -78dBm 11n HT20 MCS7: -76dBm 11n HT40 MCS7: -74dBm |
Wireless Features | Enable/Disable Wireless Radio DFS (latest firmware and hardware required) Access control LED control Power Schedule WiFi Coverage |
Wireless Security | 64/128-bit WEP, WPA/WPA-PSK2/WPA2-PSK2 encryptions |
Transmission Power | 2.4 GHz = 20 dBm, 5 GHz = 30 dBm |
Others | |
---|---|
Certifications | CE, RoHS |
Package Contents | RE315 Wi-Fi Range Extender Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-compatible browser |
Environmental Factors | Operating Temperature: 0℃~40℃ (32℃~104℃) Storage Temperature: -40℃~70℃ (-40℃~158℃) Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
